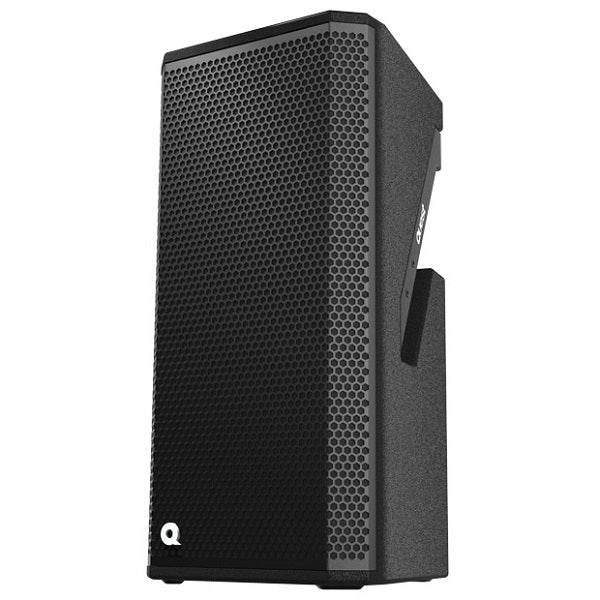

Quest HPI111
The Quest HPI111 is a medium to high powered 90 degree dispersion compact speaker system designed to project voice and music throughout mid sized performance venues. It can be hung in small arrays or function as a stand alone speaker system in mobile PA production with or without sub bass enhancement. Contained within the discrete HPI111 appearance there are a number of key technical innovations to improve performance in real venue environments.

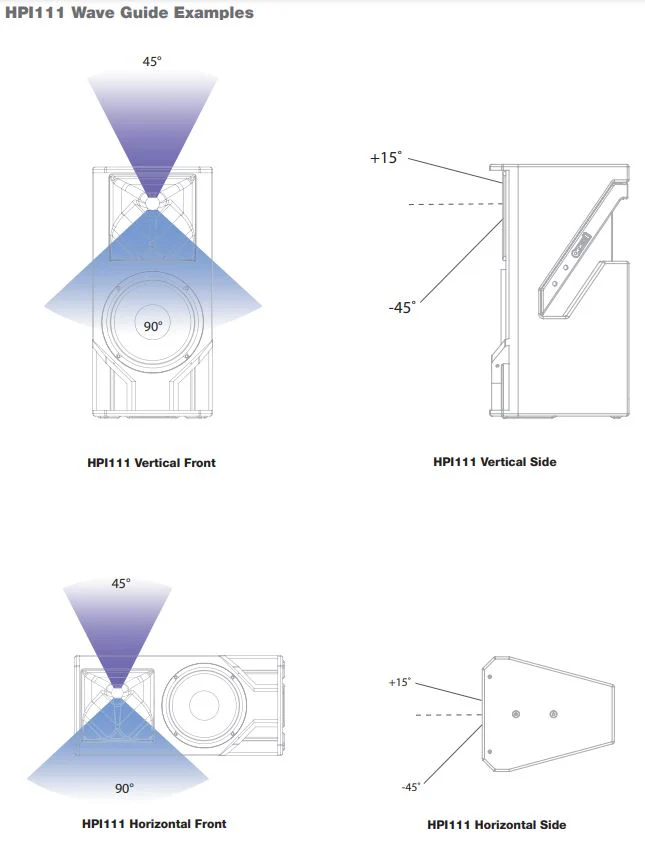

The Quest HPI111 system is comprised of a single 1" 90 degree asymmetrical wave guide and one 10" high powered woofer. The HF can be rotated to deliver optimum coverage in both vertical and horizontal installations. This makes the HPI111 function in a wide variety of installation environments for both vertical and horizontal installation. The HPI111 asymmetrical wave guide provides 90 degrees horizontal dispersion at the base of the flare and 45 degrees at the top. Vertical dispersion above the box is limited to 15 degrees. This directs the sound where the audience is, and not to the walls and ceilings, resulting in high intelligibility in reverberant venues.
The HPI111 is the perfect candidate for a myriad of applications including performing arts centres, houses of worship, corporate theatres and venue environments where mid level SPL coupled with high definition vocal reproduction is required.
The HPI111 is available in black (HPI111) or white (HPI111W) low sheen finish.
The Quest HPI111 is a medium to high powered 90 degree dispersion compact speaker system designed to project voice and music throughout mid sized performance venues. It can be hung in small arrays or function as a stand alone speaker system in mobile PA production with or without sub bass enhancement. Contained within the discrete HPI111 appearance there are a number of key technical innovations to improve performance in real venue environments.
The Quest HPI111 system is comprised of a single 1" 90 degree asymmetrical wave guide and one 10" high powered woofer. The HF can be rotated to deliver optimum coverage in both vertical and horizontal installations. This makes the HPI111 function in a wide variety of installation environments for both vertical and horizontal installation. The HPI111 asymmetrical wave guide provides 90 degrees horizontal dispersion at the base of the flare and 45 degrees at the top. Vertical dispersion above the box is limited to 15 degrees. This directs the sound where the audience is, and not to the walls and ceilings, resulting in high intelligibility in reverberant venues.
The HPI111 is the perfect candidate for a myriad of applications including performing arts centres, houses of worship, corporate theatres and venue environments where mid level SPL coupled with high definition vocal reproduction is required.
The HPI111 is available in black (HPI111) or white (HPI111W) low sheen finish.
Description
The Quest HPI111 is a medium to high powered 90 degree dispersion compact speaker system designed to project voice and music throughout mid sized performance venues. It can be hung in small arrays or function as a stand alone speaker system in mobile PA production with or without sub bass enhancement. Contained within the discrete HPI111 appearance there are a number of key technical innovations to improve performance in real venue environments.
The Quest HPI111 system is comprised of a single 1" 90 degree asymmetrical wave guide and one 10" high powered woofer. The HF can be rotated to deliver optimum coverage in both vertical and horizontal installations. This makes the HPI111 function in a wide variety of installation environments for both vertical and horizontal installation. The HPI111 asymmetrical wave guide provides 90 degrees horizontal dispersion at the base of the flare and 45 degrees at the top. Vertical dispersion above the box is limited to 15 degrees. This directs the sound where the audience is, and not to the walls and ceilings, resulting in high intelligibility in reverberant venues.
The HPI111 is the perfect candidate for a myriad of applications including performing arts centres, houses of worship, corporate theatres and venue environments where mid level SPL coupled with high definition vocal reproduction is required.
The HPI111 is available in black (HPI111) or white (HPI111W) low sheen finish.
